8130 Remote Terminal Unit

8130 Remote Terminal Unit

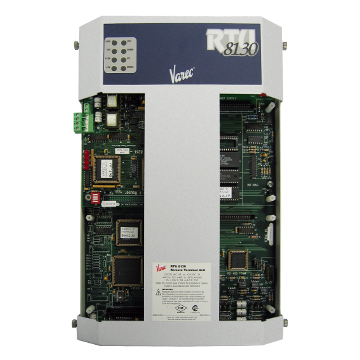

The 8130 Remote Terminal Unit (RTU) collects and transmits data from field instruments to a central system, such as FuelsManager®, host DCS or PLCs. All information obtained can be used for inventory, alarm, control and automation.



NOTE: This product is approaching its end-of-life status. Please contact sales or your local rep for current inventory availability for new units and/or spare parts. The 8810 RTU replaces the 8130 RTU.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Modular Communications

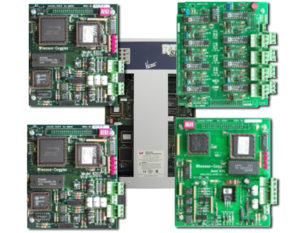

The 8130 RTU supports up to four interface modules at one time that can interface to virtually any tank gauge on the market. With over 20 types of modules available, it is possible to integrate float and tape transmitters, HTG, servo, magnetostrictive and radar gauges from different manufacturers – all using a single device.





Control and Automation

A full range of I/O interfaces is available for the 8130 RTU, offering connectivity to virtually every type of signal encountered in industrial environments. Analog, digital and serial data inputs and outputs support simplifies integration and increases control and automation possibilities.





Configuration and Support

The 8130 RTU allows remote configuration of your tank gauges, which means less on-tank activities, resulting in less personnel risk. The gauge configuration data can then be exported to other applications, such as Microsoft Excel® or Access®; thus documenting all tank gauge equipment.





Built-in Software

Software “blocks” built into the device provide a broad range of complex, but commonly needed functions, such as analog scaling, flow measurement and totalization, digital alarm handling, and pump/valve acquisition and control.





Power

Supply – 110–120 V AC or 200–240 V AC @ 50/60 Hz or 18–36 V DC
Consumption – 50 VA max @ 110/220 VAC (500 mA), 20 VA max @ 24 VDC

Operating Temperature Range

‐40 to +158 °F (‐40 to +70 °C)

Approvals

FM ‐ Class I, Division 2, Groups A, B, C & D T3C (with optional NEMA 4 enclosure required)
CSA ‐ Class I, Division 2, Groups A, B, C & D (with optional NEMA 4 enclosure required)

01 Power Supply
  • 110…120 V AC 50/60 Hz
  • 220…240 V AC 50/60 Hz
  • 18…36 V DC
02 Host Emulation
  • None
  • TSU Emulation ‐ for connection to Varec TankView systems
  • CIU Emulation ‐ emulates Enraf model 858 CIU interface
03 Field Communications
  • None
  • Varec Matrix Communication ‐ interfaces to Varec Matrix devices (1600/1700) require 8210, 8201 & 8204 Interface Modules
  • MODBUS Master Communication*
  • CIU communication ‐ interfaces to existing Enraf 858 CIU devices*
  • Veeder Root (TLS 350) Communication*
  • Hectronic OptiLevel Communication*



Note! * Using RTU motherboard communications ports

04 Calculations
  • None
  • Hybrid tank calculations
  • Hydrostatic tank calculations
05 Strapping Tables
  • None
  • Embedded tank strapping tables
  • Floating Roof Tank with Floatwell
  • Tank Top Mounting
  • Bolted Tank
  • Cone Roof Tank with Pan (No Floatwell)
  • Floating Roof Tank (No Floatwell
06 Approvals
  • For use in non‐hazardous areas
  • FM ‐ Class I, Division 2, Groups A, B, C & D T3C (with optional NEMA 4 enclosure required)
  • CSA ‐ Class I, Division 2, Groups A, B, C & D (with optional NEMA 4 enclosure required)
INTERFACE MODULES
16-Channel Digital I/O
Interface Module 8201
  • 16 digital I/O channels
  • 24 VDC, 120 or 240 VAC
  • Channels individually configurable for input or output
  • Dedicated status LED
  • Dedicated fuse for output modules only
  • Requires two I/O expansion module slots
MODBUS Dual RS-485
Interface Module 8203
  • Dual high-speed communications channels
  • Optically isolated
  • Up to 32 devices per channel
  • Communications with instruments using Rackbus, MODBUS, DDA, or Petrosense Probe protocols
  • Requires one I/O expansion module slot
8 Channel Multi-Function
Interface Module 8204
  • Isolated analog (4-20 mA), Thermocouple, RTD inputs, high speed pulse accumulation or digital I/O channels
  • 24 VDC, 120 or 240 VAC operation
  • Individually configurable for input or output
  • Dedicated status LED/fuses
  • Requires one I/O expansion module slot
16 Channel Analog Input
Interface Module 8205
  • 12 bit accuracy A/D with common-mode noise rejection
  • Dedicated fused 24V line for each channel
  • Throughput accuracy (field to database) = ±0.012%.
  • Each channel individually configurable for; 4-20 mA loop powered input, 4-20 mA self powered, voltage input
  • Requires two I/O expansion module slots
8-Channel Analog Output
Interface Module 8207
  • 16 Bit accuracy D/A converter
  • Current or voltage level output (0-24 mA, 0-20 mA, 4-20 mA & 0-5V)
  • 8 channels
  • Requires one I/O expansion module slot
TIWAY (Texas Inst.)
Interface Module 8208
  • Dual high-speed communications channels
  • Optically isolated
  • Up to 32 devices per channel
  • Communications using TIWAY or CIM protocol
  • Requires one I/O expansion module slot
Mark/Space (Varec)
Interface Module 8210
  • Supports up to 50 tanks
  • Communicates using Mark/Space protocol
  • Interfaces to the Varec 1900 and compatible tank gauge transmitters
  • Requires one I/O expansion module slot
Current Loop
Interface Module 8211
  • 20 mA current loop
  • Up to 15 devices per channel
  • Two channels
  • Communicates using GPE or Whessoe Bus protocol
  • Requires one I/O expansion module slot
TRL/2 (SAAB)
Interface Module 8212
  • Saab (Emmerson) TRL/2 Bus
  • Up to 16 Saab Radar Tank Gauges per channel
  • Two channels
  • Requires one I/O expansion module slot
BPM (Enraf)
Interface Module 8214
  • Transformer isolated
  • Up to 10 tanks per channel
  • Two channels
  • Communications with Enraf tank gauges
  • Requires one I/O expansion module slot
Tankway (L&J)
Interface Module 8215
  • Supports up to 50 tanks
  • Communicates using L&J Tankway protocol
  • Interfaces to L&J Tankway compatible tank gauge transmitters
  • Requires one I/O expansion module slot
LON (Prime/Barton)
Interface Module 8216
  • Supports up to 128 tanks
  • Communicates with LON Series 3500 TCU
  • 78 Kbps twisted pair LON interface
  • Requires one I/O expansion module slot
Dual RS-232
Interface Module 8217
  • Dual high-speed communications channels
  • RS-232 communications
  • Communicates with L&J Model 8100
  • Communicates with Veeder Root TLS-350
  • Communicates with Universal Sensors & Devices CATLAS
  • Communicates with Enraf CIU
  • Communicates with MODBUS devices
  • Requires one I/O expansion module slot

Technical Specifications

8130 Remote Terminal Unit Technical Specifications
Technical specifications for the 8130 Remote Terminal Unit.

Manuals

8201 16-Channel Digital IO Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8201 16-Channel IO Remote Terminal Unit.
8203 Dual RS-485 GSI ASCII Communications Interface Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8203 Dual RS-485 GSI ASCII Communications Interface.
8203 Dual RS-485 MTS DDA Communications Interface Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8203 Dual RS-485 MTS DDA Communications...
8203 Dual RS-485 Petro Communications Interface Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8203 Dual RS-485 Petrosense Communications Interface.
8203 Dual RS-485 Rackbus Communications Interface Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8203 Dual RS-485 Rackbus Communications Interface.
8204 8-Channel Multi-Function Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8204 8-Channel Multi-Function Remote Terminal Unit.
8205 16-Channel Analog Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8205 16-Channel Analog Remote Terminal Unit.
8207 8-Channel Analog Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8207 Analog Interface Module Remote Terminal...
8208 TIWAY Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8208 TIWAY interface module remote terminal...
8210 Mark Space Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8210 Mark/Space Interface Module Remote Terminal...
8211 Current Loop Interface Module using Whessoe Bus Protocol Installation and Operations Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8211 Current Loop Interface Module using...
8212 SAAB Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8212 SAAB Interface Module Remote Terminal...
8213 VI Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8213 VI Interface Module Remote Terminal...
8214 Enraf Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8214 Enraf Interface Module Remote Terminal...
8215 L J TankWay Remote Terminal Unit Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8215 L & J TankWay interface...
8217 Dual RS-232 Interface for L & J and Universal Sensors Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8217 Dual RS-232 Interface for L...
8217 Dual RS-232 Interface for Veeder Root Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8217 Dual RS-232 Interface for Veeder...
8203 Dual RS-485 MODBUS Communications Interface Manual
Manual designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8203 Dual RS-485 MODBUS Communications...
