NMR84 Radar Tank Gauge

NMR84 Radar Tank Gauge

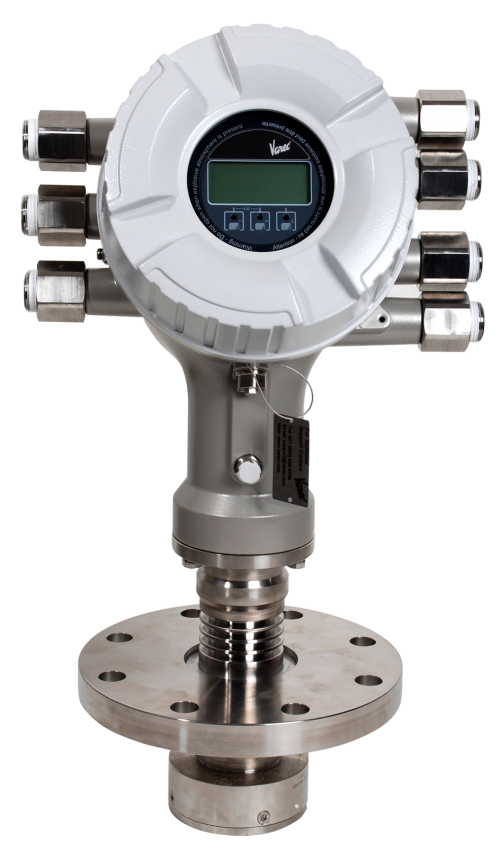

The NMR84 Radar Tank Gauge (RTG), with an accuracy rate of ±0.5 mm and ideally suited for stilling well applications in custody transfers, is used for high accuracy, continuous, non-contact level measurement in bulk liquid storage tanks.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Accuracy Approved for Custody Transfer

NMR84 RTG, with an accuracy level of ±0.5mm (0.02″), uses the drip-off planar antenna for stilling well applications. The drip-off planar antenna eliminates problems caused by condensation, and is designed for high accuracy liquid level measurement in storage and process applications.





Touch Screen Operations

Easy onsite operation using built-in touch control display without having to open the enclosure. It also has a user friendly operating menu.





Worldwide Approvals

Each radar gauge is approved for use in explosion hazardous areas to FM, IEC Ex and ATEX standards. It is also SIL 2 and SIL 3 certified.





Key Features

  • SIL2 and SIL3 certified (Min, Max, Continuous level)
  •  Up to 6 SIL relay outputs
  • Measures liquid level to an accuracy of ±0.5 mm (0.02 in)
  • Wetted parts are completely separated from the electronic circuit
  • Wide range of output signals including V1, MODBUS RS-485, HART protocol
  • Tank top mounting as small as 4″/DN100 flange
  • Interfaces to FuelsManager via the 8130 Remote Terminal Unit or 8300 series TankGate

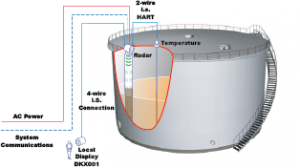

  • Integration of HART instrumentation for temperature, water level, pressure, and overfill prevention sensor
  • Suitable for atmospheric and high pressure applications up to 25 bar/2.5 MPa (362 psi)
  • Robust IP66/68, NEMA Type 4x/6P enclosure
  • Direct connection of spot or average temperature sensor
  • Simplified installation and trouble-free operations due to easy connection to major DCS systems via open protocols
  • Approved for use in explosion-hazardous areas
  • User-friendly operating menu (multi-lingual)
  • Weights & Measure-approved for use in custody transfer applications
  • Unique drip-off antenna design eliminates measurement error due to condensation build-up
  • Tank side monitoring and operation can be performed by the remote display and operating module DKX001
Weight
  • Housing with electronics: approx. 12 kg (26 lb)
  • Sensor and process connection: 8.5 to 43 kg (19 to 95 lb); dependent on the device version
Enclosure

• Housing: Aluminum
• Antenna and Process Connection:
• 316L: Flange, Housing Adapter, Sensor Adapter, Antenna Retaining Ring, Antenna Extension
• PTFE: Planar Antenna
• FKM/HNBR/FFKM: Sealing Ring
• Rated IP66/68, NEMA Type 4x/6P enclosure

Flange Type
  • NPS ASME B16.5, 150 lb, 4″ to 10″
  • NPS ASME B16.5, 300 lb, 4″ to 8″
  • DN100/DN150, PN10/16 B1 and PN25/40 B1
  • DN200/DN250, PN16 B1
  • DN200 PN25 B1
  • UNI flange DN150/6″/150, max PN1/ Cl.14.5/1K, suitable for DN150 PN10/16, NPS 6″  Cl.150, 10K 150
  • UNI flange DN200/8″/200, max PN1/ Cl.14.5/1K, suitable for DN200 PN10/16, NPS 8″ Cl.150, 10K 200
  • UNI flange DN250/10″/250, max PN1/ Cl.14.5/1K, suitable for DN250 PN10/16, NPS 10″ Cl.150, 10K 250
  • UNI flange DN300/12″/300, max PN1/ Cl.14.5/1K, suitable for DN300 PN10/16, NPS 12″ Cl.150, 10K 300
Ambient Temperature
  • Device: -40 to +60°C (-40 to +140°F)
  • Display Module: -20 to +70°C (-4 to
    +158°F)
Primary Output

• MODBUS RS485
• V1
• 4-20mA HART Ex d/XP, RTD input
• 4-20mA HART Ex i/IS, RTD input

Range

Calibration Range: 30 m (98 ft)

Maximum Range: Depending upon configuration choices
0.8 to 20 m (2.6 to 66 ft)
0.8 to 30 m (2.6 to 98 ft)
0.8 to 40 m (2.6 to 131 ft)

Approvals

FM, IEC Ex and ATEX approvals

See specifications document for more information.

Approvals & Certifications

FM, IEC Ex and ATEX approvals

SIL2 and SIL 3 certifications

Power Supply
  • High voltage type: 85 to 264 VAC, 50/60 Hz, 28.8 VA
  • Low voltage type: In preparation
Communication

Primary Output

  • Modbus RS485
  • V1
  • 4-20mA HART Ex d/XP, RTD input
  • 4-20mA HART Ex i/IS, RTD input

Secondary I/O Analogue

  • Ex d/XP, 1x 4-20mA HART, 1x RTD input
  • Ex d/XP, 2x 4-20mA HART, 2x RTD input
  • Ex i/IS, 1x 4-20mA HART, 1x RTD input
  • Ex i/IS, 2x 4-20mA HART, 2x RTD input
  • 1x Ex i/IS 4-20mA HART, 2x RTD input + 1x Ex d/XP 4-20mA HART

Secondary I/I Digital Ex D/XP

  • 2x relay / 2x module discrete
  • 4x relay / 4x module discrete
  • 6x relay / 6x module discrete
  • Modbus RS485
  • Modbus RS485 + 2x relay / 2x module discrete
  • Modbus RS485 + 4x relay / 4x module discrete



Housing

Transmitter Aluminum, coated, process 316/316L

Electrical
  • Thread M20, IP66/68 NEMA Type 4X/6P Encl
  • Thread M25, IP66/68 NEMA Type 4X/6P Encl.
  • Thread G1/2, IP66/68 NEMA Type 4X/6P Encl.
  • Thread G3/4, IP66/68 NEMA Type 4X/6P Encl.
  • Thread NPT1/2, IP66/68 NEMA Type 4X/6P Encl.
  • Thread NPT3/4, IP66/68 NEMA Type 4X/6P Encl.
Antenna
  • Planar 100mm/4″
  • Planar 150mm/6″
  • Planar 200mm/8″
  • Planar 250mm/10″
  • Planar 300mm/12″
Language
  • English
  • German
  • Japanese

Contact Varec for more information or see technical specifications.
