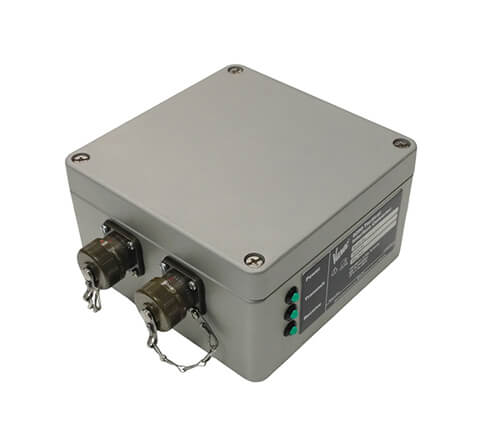

The 8250 Tactical Interface Converter (TIC) provides a communications interface between the Tactical Data Unit (TDU) and the Tactical Mobile Computer (TMC). The 8250 TIC translates data received from the TDU via the RS485 communication protocol, then translates it to an RS232 communication protocol and sends it to the TMC. The TIC also provides continuous DC power to the attached TDUs.

  • Overview
  • Specifications
  • Resources
  • Related Products
  • Integral part of the Varec TacFuels system solution
  • cSGSus Approved for normal locations (USA & Canada)
  • 2-wire sensor cable is compatible with all petroleum fuel products
  • Simple plug and play desktop installation
  • All power and communications cables are connected via military style quick connects/disconnects.
  • Rugged design makes it suitable for harsh environments.

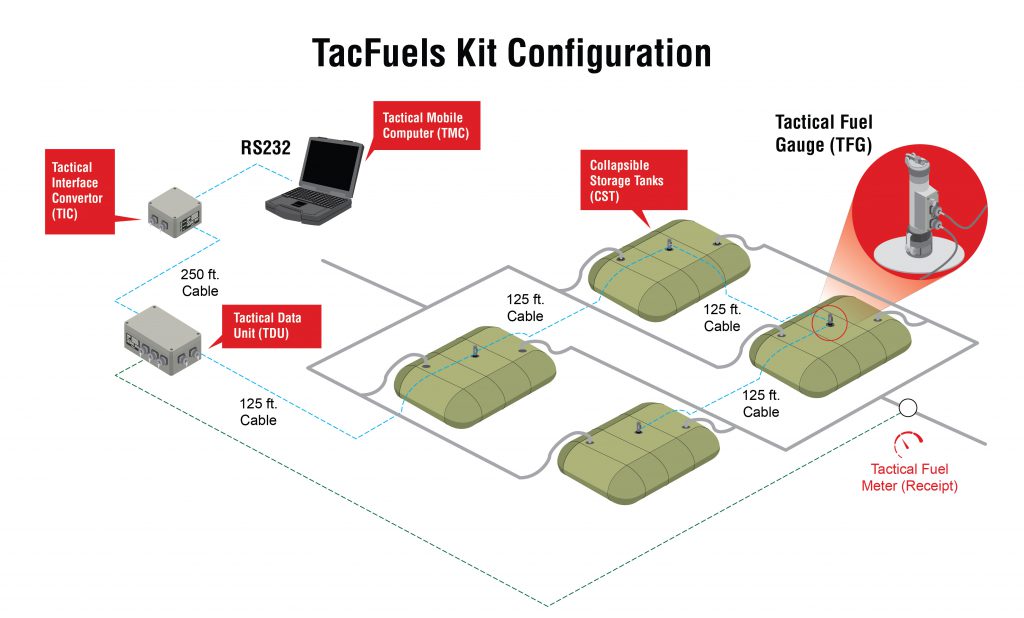

TacFuel Configuration Diagram 4 Tanks







Environmental Operating Temperature

-22 to +140 °F (-30 to +60 °C)

Enclosure

Powder coated aluminum

LED Indicators

Sealed LEDs indicating:
– Powered ON
– Actively communicating with the TMC

Lightning Protection

Solid state transient voltage suppressors, current limiting resistors and fuses

Mounting

Control room/desk top

Power Requirement

100 – 240 VAC

Dimensions

6.3” x 6.3” x 3.6” (160 x 160 x 90 mm)

Ports

x2 RS485 standard ports
x1 USB (optional)

For complete technical specifications, download the technical document or product manual.
