4590 Tankside Monitor

4590 Tankside Monitor

The 4590 Tankside Monitor (TSM) is used in combination with Varec radar gauges for bulk storage applications at tank farms, terminals and refineries. It integrates other instruments, performs tank side calculations and shares data from the field to the control room.



NOTE: This product is approaching its end-of-life status. Please contact sales or your local rep for current inventory availability for new units and/or spare parts.



  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Step up to New Technology

Integrate advanced radar tank gauges into existing systems a step at a time. The 4590 TSM uses industry standard communication protocols, including EIA-485 MODBUS®, Sakura V1, Whessoematic (WM 550), GPE, Mark/Space, L&J and Enraf BPM.





Easy to Read, Safe and Simple to Operate

Mounted within a flameproof enclosure,the 4590 TSM has a Liquid Crystal Display (LCD) with touch control that ensures safe operation even in hazardous areas.





Versatile Tank Gauging

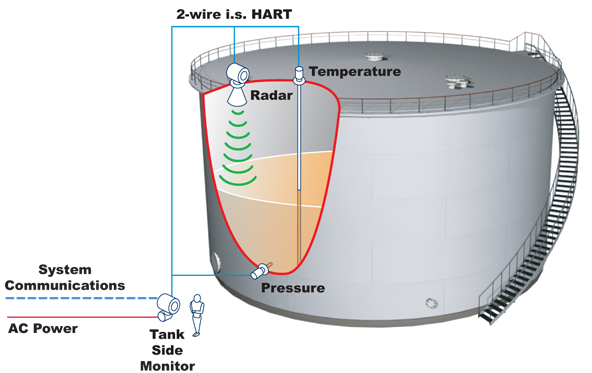

In addition to connecting to the primary radar tank gauge, the 4590 TSM also integrates up to 6 HART® devices using intrinsically safe 2-wire connections, such as temperature and pressure transmitters for Hybrid and Hydrostatic (mass) applications.





Accurate Results

The 4590 TSM performs tank calculations in real-time including temperature compensation and corrections for tank distortion, so that you get a more accurate view of the contents of your tank.





Approved for Oil & Gas

The 4590 TSM can be configured and used as part of a TÜV approved overfill protection system or a NMI approved system for custody transfer. It is, of course, approved for use in hazardous areas.





Field Communication Protocols and Functionality

ENRAF BPM, with non-I.S. 4-20mA input, and non-I.S. 4-20mA HART Master output
GPE, with non-I.S. 4-20mA HART Master output
WM550, with non-I.S. 4-20mA output (Whessoe protocol with dual communication)
Varec Mark/Space, with non-I.S. 4-20mA input, and non-I.S. 4-20mA HART Master output
MODBUS EIA 485, with non-I.S. 4-20mA input, and non I.S. 4-20mA HART Master output
L&J, with non-I.S. 4-20mA input, and non-I.S. 4-20mA HART Master output
V1, with non-I.S. 4-20mA output, non-I.S. 4-20mA HART Master output, and relay output

Service Rating

Explosion proof housing rated IP65 (NEMA 4)

Conduit Entries

3 Non i.s. entries ‐ M20 x 1.5.
2 i.s. entries ‐ M25 x 1.5.
Adapters provide other industry sized connections

Additional Inputs & Outputs

Spot RTD i.s temperature input
Up to 2 discrete I/O modules

Power Consumption

370 mA @ 24 VDC
200 mA @ 48 VDC
75 mA @ 125VAC
45 mA @ 220 VAC

Approvals

FM ‐ FM XP ‐ Class I, Div 1 Groups A‐D;
CSA ‐ FM XP ‐ Class I, Div 1 Groups A‐D;
Contact Varec for ATEX, NMi and PTB approved devices

For complete technical specifications, download the technical document or product manual.

01 Approvals
  • For non-hazardous areas
  • CSAXPCl.I,Div1,Gr.A-D
  • FMXPCl.I,Div1,Gr.A-D
  • Special version, to be specified
02 Communications
  • ENRAF BPM, non-I.S. 4-20mA input, non-I.S. 4-20mA HART Master output
  • GPE, non-I.S. 4-20mA HART Master output
  • WM550, non-I.S. 4-20mA output, Whessoe protocol with dual communication
  • Varec Mark/Space, non-I.S. 4-20mA input, non-I.S. 4-20mA HART Master output
  • MODBUS, non-I.S. 4-20mA input, non I.S. 4-20mA HART Master output, EIA 485
  • L&J, non-I.S. 4-20mA input, non-I.S. 4-20mA HART Master output
  • V1, non-I.S. 4-20mA output, non-I.S. 4-20mA HART Master output, relay output
03 Power Supply
  • Power supply 18…55 VAC/DC
  • Power supply 55…264V AC
04 Spot RTD
  • None
  • With spot RTD temperature input, I.S.
05 Discrete Module A
  • None
  • Discrete input module A, 90…140V AC
  • Discrete input module A, 3…32V DC
  • Discrete input module A, 180…280V AC
  • Discrete input module A, 35…60V AC/DC
  • Discrete output module A, 24…280V AC
  • Discrete output module A, 3…60V DC
  • Discrete output module A, 24…140V AC
  • Discrete output module A, 4…200V DC
  • Relay output A, 0-100 VDC, 0-120VAC
06 Discrete Module B
  • None
  • Discrete input module B, 90…140V AC
  • Discrete input module B, 3…32V DC
  • Discrete input module B, 180…280V AC
  • Discrete input module B, 35…60V AC/DC
  • Discrete output module B, 24…280V AC
  • Discrete output module B, 3…60V DC
  • Discrete output module B, 24…140V AC
  • Discrete output module B, 4…200V DC
  • Relay output B, 0-100 VDC, 0-120VAC
07 Additional I.S. Module
  • None
  • Integrated 4…20mA input, two discrete inputs
08 Cable Entries Non-I.S.
  • 2 x G 1/2” gland (in preparation)
  • 2 x Ex d M20x1.5 entries
  • 2 x Ex d G 1/2” entries
  • 2 x Ex d 1/2” NPT entries
  • 2 x Ex d 3/4” NPT entries
  • 3 x Ex d M20x1.5 entries
  • 3 x Ex d G 1/2” entries
  • 3 x Ex d 1/2” NPT entries
  • 3 x Ex d 3/4” NPT entries (in preparation)
09 Cable Entries I.S.
  • M25x1.5 glands, 13…18mm, I.S. compartment
  • G 1/2” entries, I.S. compartment
  • 1/2” NPT entries, I.S. compartment
  • 3/4” NPT entries, I.S. compartment
10 Custody Transfer Approvals
  • None
  • Custody transfer type approval
11 Paint
  • Silver

Manuals

4590 Tank Side Monitor Installation and Operations Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 4590 Tank Side Monitor.
4590 Tank Side Monitor Instrument Functions Manual
This guide describes the instrument functions and how to enter parameters for the 4590 Tank Side Monitor.
4590 Tank Side Monitor Service Manual
This is the 4590 Tank Side Monitor with the Modbus Communications Protocol service manual.

Technical Specifications

4590 Tank Side Monitor Technical Specifications
Technical specifications for the 4590 Tank Side Monitor.
