FMR60 Radar Tank Gauge

FMR60 Radar Tank Gauge

The FMR60 Radar Tank Gauge (RTG) is a smart, 80 GHz radar tank gauge for continuous and non-contact level measurement with an accuracy rate of ±1 mm.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Accurately Measure Your Inventory

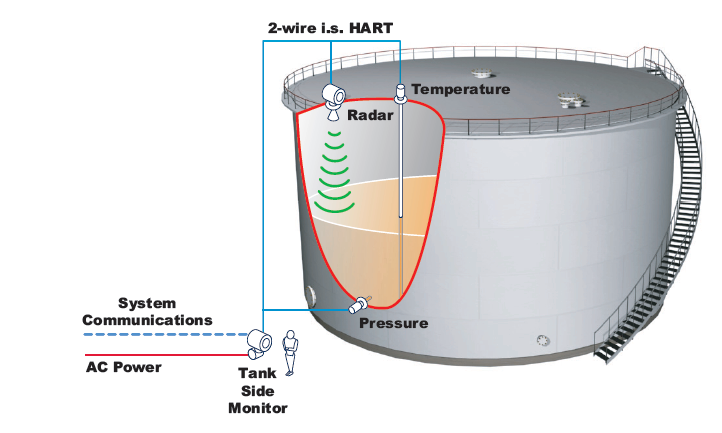

Radar on Tank IllustrationFMR60 RTG, with an accuracy level of ±1mm (0.04″), is a 2-wire technology that reduces tank wiring costs and allows easy implementation into existing systems. With its non-contact measurement, the tank’s top is almost independent from product properties.



Touch Screen Operations

Easy onsite operation using built-in touch control display without having to open the enclosure. It also has a user friendly operating menu.



Bluetooth® Enabled

The FMR62 has Bluetooth® wireless technology for for commissioning, operation, and maintenance via free iOS/Android app SmartBlue, with optional BT10 Bluetooth module.



Worldwide Approvals

Each radar gauge is approved for use in explosion hazardous areas to ATEX, FM, CSA, TIIS, NEPSi, INMETRO, JPN and IECEx standards. They are also SIL 2 and SIL 3 rated for overfill prevention.







Key Features

  • 2-wire technology: Reduces on tank wiring costs and allows easy implementation into existing systems
  • Non-contact measurement: Tank top is almost independent from product properties.
  • 2″/50 mm PTFE drip-off antenna
  • Standard range to 164 ft (50 m)
  • Access historic data from device integrated memory (HistoROM) and transfer configuration setting from device to device.
  • Easy commissioning and diagnostics using Windows® based software
  • HART protocol
  • High temperatures: Suitable for process temperatures from -40°C (-40°F), up to 130°C (266°F)
  • Pressure: -1 to +16 bar (-14.5 to +232 psi)
  • Optional: Integrated over voltage protection
  • Approved for use in explosive hazardous locations
  • Optional remote display (FHX50)
Accuracy

Measuring distance up to 0.8 m (2.62 ft): max. ±4 mm (±0.16 in) – digital, ±0.03% analog
Measuring distance > 0.8 m (2.62 ft): ±1 mm (±0.04 in), digital, ±0.02% analog
Non-repeatability – ≤ 1 mm (0.04 in)

Power Consumption
  • 2-wire; 4-20mA HART: < 0.9 W
  • 2-wire; 4-20mA HART, switch output:< 0.9 W
  • 2-wire; 4-20mA HART, 4-20mA: < 2 x 0.7 W
Current Consumption

HART:
Nominal current: 3.6 to 22mA. The start-up current for multidrop mode can be parametrized
(is set to 3.6mA on delivery)

Breakdown signal (NAMUR NE43): adjustable: 3.59 to 22.5mA

Temperature

+24 °C (+75 °F) ±5° F (±9° C)

Pressure

960 mbar abs. (14 psia) ±100 mbar (±1.45 psi)

Weight

3.2 – 3.9 kg (7.11 – 8.61 lb) plus flange weight

Enclosure

Degree of protection:

  • With closed housing tested according to:
    •  IP68, NEMA6P (24 h at 1.83 m under water surface)
    • For plastic housing with transparent cover (display module): IP68 (24h at 1.00 m under
      water surface)
    • IP66, NEMA4X
  • With open housing: IP20, NEMA1
  • Display module: IP22, NEMA2
  • Housing GT19: plastic
  • Housing GT20: aluminium, seawater repellent, powder coated
Antenna

IP 68 (NEMA 6P)

Ambient Temperature

Unit: -40 °F and +176 °F (-40 °C and +80 °C)
Display: -4 °F and +158 °F (-20 °C and +70 °C)

Operating Frequency

Approx. 80 GHz, up to 8 devices can be installed in the same tank

Approvals

FM, ATEX, IEC Ex, or NEPSI

Approvals and Certifications

FM, CSA, ATEX, IECEx, NEPSi, KC, INMETRO, JPN, and TIIS

Antenna
  • Drip-off, PTFE 50mm/2″ antenna
Seal

FKM Viton GLT (-40…80° C/-40…176° F or – 40…130° C/-40…266° F) and EPDM (-40…130° C/-40…266° F)

Process Connections
  • Threaded ISO0228 G1-1/2″, 316L
  • Thread ANSI MNPT1-1/2″, 316L
  • PP or 316L – UNI flange 3″/DN80/80, max 4bar abs/58psia, suitable for NPS 3″ Cl.150/DN80 PN16/10K 80
  • PP or 316L – UNI flange 4″/DN100/100, max 4bar abs/58psia, suitable for NPS 4″ Cl.150/DN100 PN16/10K 100
  • PP or 316L – UNI flange 6″/DN150/150, max 4bar abs/58psia, suitable for NPS 6″ Cl.150/DN150 PN16/10K 150
Output Options

HART

Gland Entry

Metric, NPT, G

Languages

Over 15 national languages available

Technical Specifications

FMR60 Radar Tank Gauge Technical Specifications
This is the FMR60 Radar Tank Gauge Technical Specifications document to help explain the capabilities of the gauge.

Brochure

Advanced Tank Gauging
High Accuracy Inventory Management and Custody Transfer Applications
Inventory Control Solutions
Integrate Field Instruments and Software for Complete Asset Management
FuelsManager Applications for Tank Farms, Terminals and Refineries
FuelsManager® is suite of integrated software applications that fuel logistics and supply chain management organizations use to track, manage and control...

Manuals

FMR60 Radar Tank Gauge Manual
Please visit the Endress and Hauser website to access the parts and accessories information for the FMR60 Radar Gauge.
