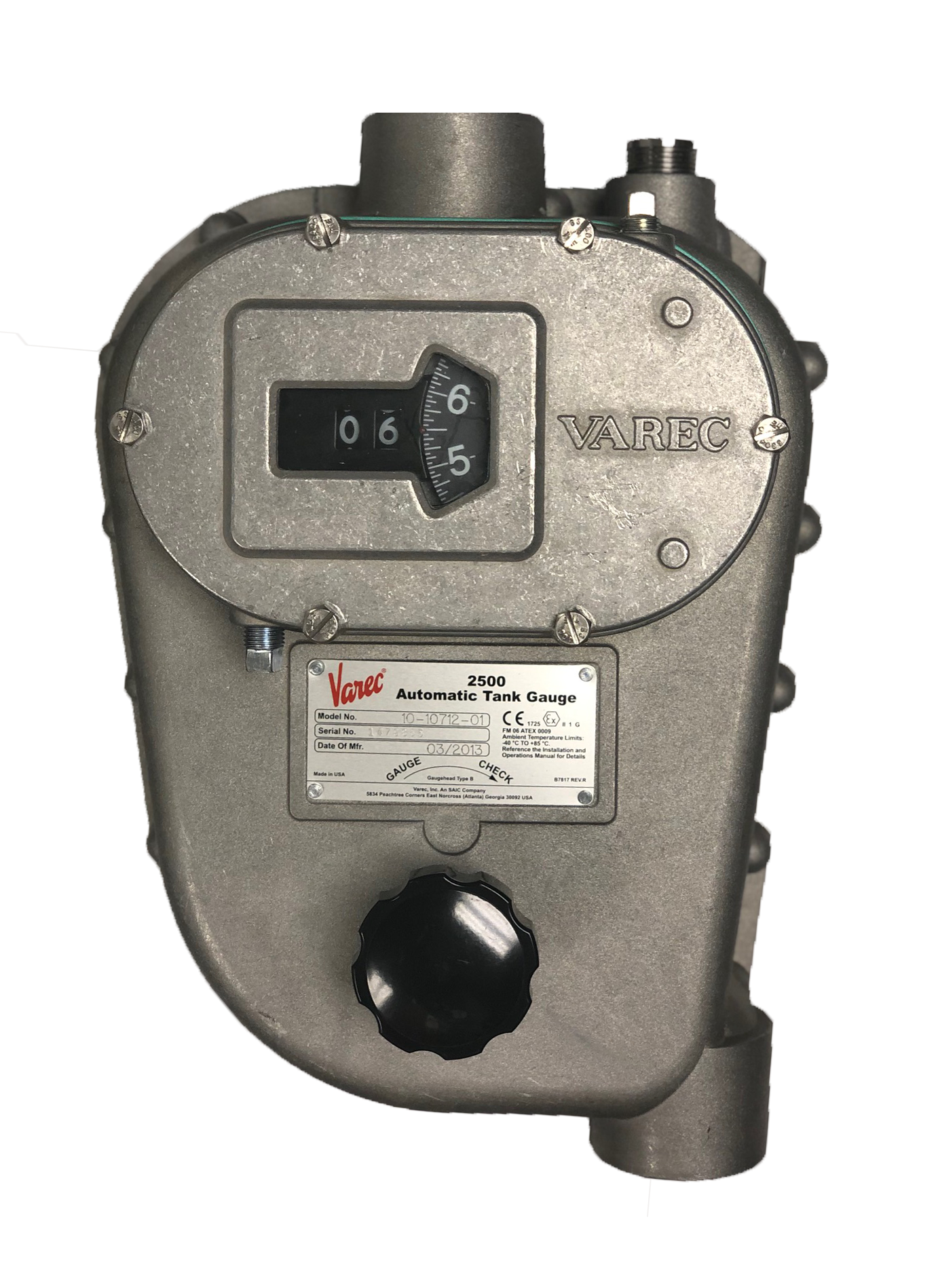

2500 Automatic Tank Gauge

2500 Automatic Tank Gauge

The 2500 Automatic Tank Gauge (ATG) is a mechanically operated, float & tape instrument designed to provide continuous liquid level measurement in bulk storage applications. This simple and reliable instrument has been used for managing inventory in the oil and gas industry for the past 90 years.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Meets API Standards



The 2500 ATG meets API Chapter 3.1B regulations for inventory control applications with a measurement accuracy of 0.2” (4 mm). It’s also built in the USA to 3rd-party quality assurance standards, and is ATEX approved for use in potentially explosive atmospheres.

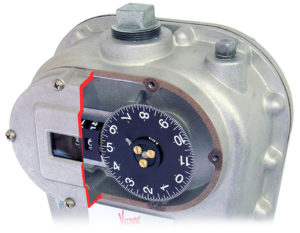

Easy-to-Read Display

The measured level is displayed at the tank side using a dial and counter built into the gaugehead. Varec pioneered the technology 90 years ago and it has proven itself ever since, probably due to it’s simplicity and reliability – just ask anyone in the industry.

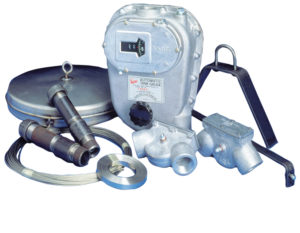

On Your Tank

Select the installation kit suitable for your bulk liquid storage tank. Floats are available for standard, interface or stilling well applications. If you have one of our competitors gauges we can easily upgrade the gaugehead, float, and tape, without replacing the hard-mounted tank fittings.

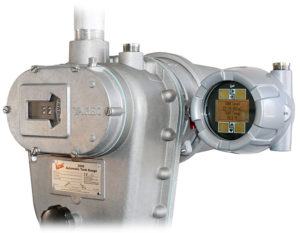

Data in the Control Room

If electronic transmission of level data or temperature measurement integration is required in the control room, then the gauge can be fitted with an optional tank gauging transmitter. Varec’s new 2920 FTT offers tank side viewing and configuration using a touch screen display.







Optimize Performance

If it’s time to replace your negator motor, consider upgrading to a Negator Cassette. The cassette optimizes the performance of your gauge by reducing friction for smoother operation. It also reduces maintenance and extends the working life of the gauge by protecting the motor from contaminants that may enter the gaugehead.





Training and Support

The 2500 ATG, its accessories, and it’s spare parts are available to ship today. Every part is supplied with detailed user instructions, but sometimes you need to see how it’s done. That’s why we also have a YouTube channel with basic how-to-videos. If you need direct support, we offer standard training and service programs that we tailor to your staff, and your facility.





Product Gravity Range

0.7 to 1.9 g/cc (700‐1900 kg/m³) specific gravity

Service Rating

Aluminum — Atmospheric to 2.5 PSI (17.2 kPa) gauge pressure

Cast Iron — Atmospheric to 10 PSI (68.95 kPa) gauge pressure

2520 ATG for high pressure applications

Measuring Range

Standard 0 – 60 ft (18 m)

Extended 0 – 96 ft (29 m) Fixed roof tanks only (requires extended range kit)

Ambient Temperature Range

‐40 °F to +185 °F (‐40 °C to +85 °C)

Approvals

ATEX II 1 G Certificate Number: FM06ATEX0009

IP66 (optional)

For complete technical specifications, download the technical document or product manual.

01 Measurement Units
  • English
  • Metric
02 Negator Unit
  • Motor
  • Cassette
03 Housing Material
  • Aluminum
  • Aluminum with Float Crank
  • Iron
04 Service Type
  • Standard
  • Moderate
  • Severe (SS316)
  • Extreme (Monel)
  • Extreme (Carp 20)
  • Interface (15 min s.g. differential)
  • Interface (25 min s.g. differential)
  • Stilling Well (6″ diameter float)
05 Tank Type
  • Cone Roof Tank
  • Cone Roof Tank with Pan and Floatwell
  • Floating Roof Tank with Floatwell
  • Tank Top Mounting
  • Bolted Tank
  • Cone Roof Tank with Pan (No Floatwell)
  • Floating Roof Tank (No Floatwell)

Technical Specifications

2500 2520 Automatic Tank Gauge Technical Specifications
Technical specifications for the low-pressure 2500 Automatic Tank Gauges. (Full document)
2500 Automatic Tank Gauge Technical Specifications
Technical specifications for the low-pressure 2500 Automatic Tank Gauges.

Parts and Accessories

2500 Automatic Tank Gauge Basic Maintenance Kit
A parts list for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Cast Iron Spare Parts List
Parts list is for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Extended Maintenance Kit
The extended maintenance kit parts list for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Gaugehead Spare Parts List
Parts list for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Overhaul Spare Parts Kit
Parts list for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Shoulder Bushing Retrofit Kit
Parts list for low-pressure 2500 Automatic Tank Gauges.
2500 Automatic Tank Gauge Overhaul Spare Parts Kit with Negator Cassette
Overhaul parts list that supports the 2500 Automatic Tank Gauge with Negator Cassette
2500 Automatic Tank Gauge Extended Maintenance Kit with Negator Cassette
The parts list that comes with the 2500 Automatic Tank Gauge Extended Maintenance Kit with Negator Cassette.
2500 Automatic Tank Gauge Negator Cassette Kit Order Form
Order form for low-pressure 2500 ATG Negator Cassette Kit

Manuals

2500 Automatic Tank Gauge Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of low-pressure 2500 Automatic Tank Gauges.

Datasheet

Float and Tape Tank Gauging Service Program
Onsite maintenance and factory certified training is performed by a Varec certified field service engineer to conduct all service work and/or provide...

Brochure

Float and Tape Tank Gauges
Simple, Safe and Reliable Inventory-Grade Level Measurement Float and tape gauges, also known as “automatic tank gauges”, have been in...
Tank Gauging Products for Bulk Liquid Storage Tanks
Simple, safe and reliable inventory measurement using float and tape, servo, radar, transmitters, and other tank gauging equipment and accessories.
Inventory Control Solutions
Integrate Field Instruments and Software for Complete Asset Management
SOLUCIONES DE CONTROL DE INVENTARIOS
Integración de los instrumentos de campo y del software para un control total de los activos.
MEDIDORES DE FLOTADOR Y CINTA
Medición sencilla, segura y confiable de nivel de líquidos, con precisión de inventario.

Certificates

ATEX Approval 2500 6000x 4560 2910 2920 8200 8240
QUALITY ASSURANCE NOTIFICATION No. FM19ATEXQ0143 in accordance with the ATEX directive 2014/34/EU, ‘Equipment and protective systems for use in potentially explosive atmospheres’

Video

Connecting a Tank Gauge Transmitter to a Varec 2500 ATG
How to connect a tank gauge transmitter to a Varec 2500 ATG.
Aligning the 2500 ATG Counter Display
How to correctly align the counter display of the 2500 ATG.
Replacing the Negator Motor in a 2500 ATG
How to remove and replace the negator motor in a 2500 ATG. Continue the installation by watching our video -...
Installing a Negator Cassette in a 2500 ATG
How to replace the negator motor with a negator cassette in a 2500 ATG for improved operation.
Connecting a Tape to a Varec 2500 ATG
How to feed a tape into the a Varec 2500 Automatic Tank Gauge (ATG), and connect it to the negator...
