8620 Driver Entry Terminal

8620 Driver Entry Terminal

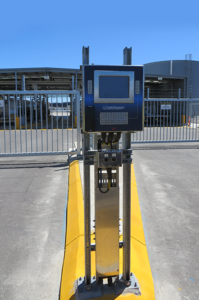

The 8620 Driver Entry Terminal (DET) is a field interface device designed for data entry and process management at facility control points, such as entry and exit gates, load racks, BOL request stations, weight scale stations and preload stations.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

FIPS-201 Compliant Operator Interface

The 8620 features multiple interface components, such as a biometric card reader (supports HID or Indala proximity cards, keyfobs, tags, smart cards, etc.) and fingerprint scanner that can be used to enter and record pertinent information about the operator or operation.



Data Capture and Process Control

The 8620 DET interfaces to FuelsManager® and supports TWIC data requirements. It captures data and provides user prompts or notifications. For example, it may capture driver ID for access control, truck ID for equipment safety, or provide notifications to drivers, such as product availability in a given load rack.



Automation and Control

Once authorization of the current process is received from FuelsManager, the 8620 DET sends I/O commands to connected devices, such as gate controls, electronic preset controllers or PLCs.



Data Transmission

Communication Ports: Ethernet (2) and/or serial (4)
Com 1, Com 2, Com 4: RS-232
Com 2: RS-485/422 or RS-232
Supports up to four General Purpose I/O via standard I/O modules.

Power Supply

Operating Voltages: 100 – 240 VAC 50/60 Hz or 24 – 48 VDC
Power Consumption: 175mA @ 110VAC or 1A @ 24VDC

Ambient Temperature Range

-40 °F to +158 °F (-40 °C to +70 °C)

Approvals

FM Approval (cFMus) – Class I, Division 2 Groups C and D, T4 – Class I, Zone 2, T4

Contact Varec for a full list of available options for this product.

Manuals

8620 Driver Entry Terminal Installation and Operation Manual
Designed to assist the user in the installation, operation, maintenance, and troubleshooting of the 8620 Driver Entry Terminal.

Technical Specifications

8620 Driver Entry Terminal Technical Specifications
Technical specifications of the 8620 Driver Entry Terminal.

Certificates

FM Approval Certificate 8620 DET
Certificate of Compliance Hazardous Location Electrical Equipment
cFM Approval Certificate 8620 DET
Certificate of Compliance Hazardous Location Electrical Equipment per Canadian Requirements

Forms

8620 Driver Entry Terminal Maintenance and Spare Parts
Checklist for maintenance and spare parts for the 8620 DET.
