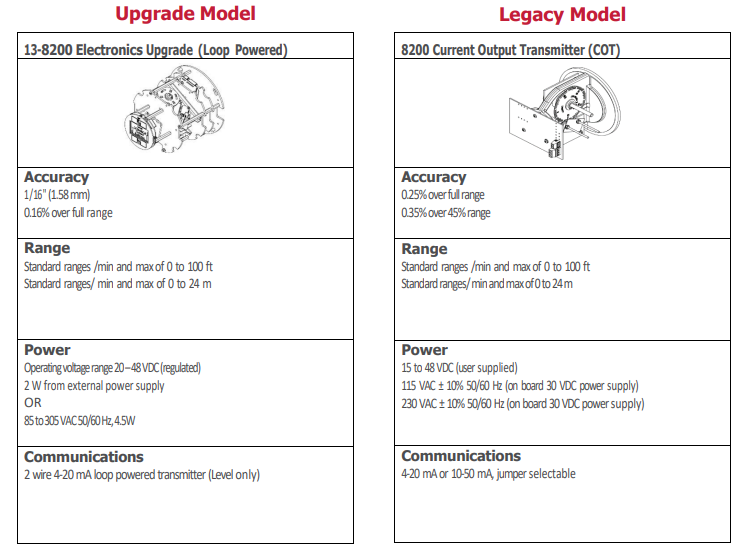

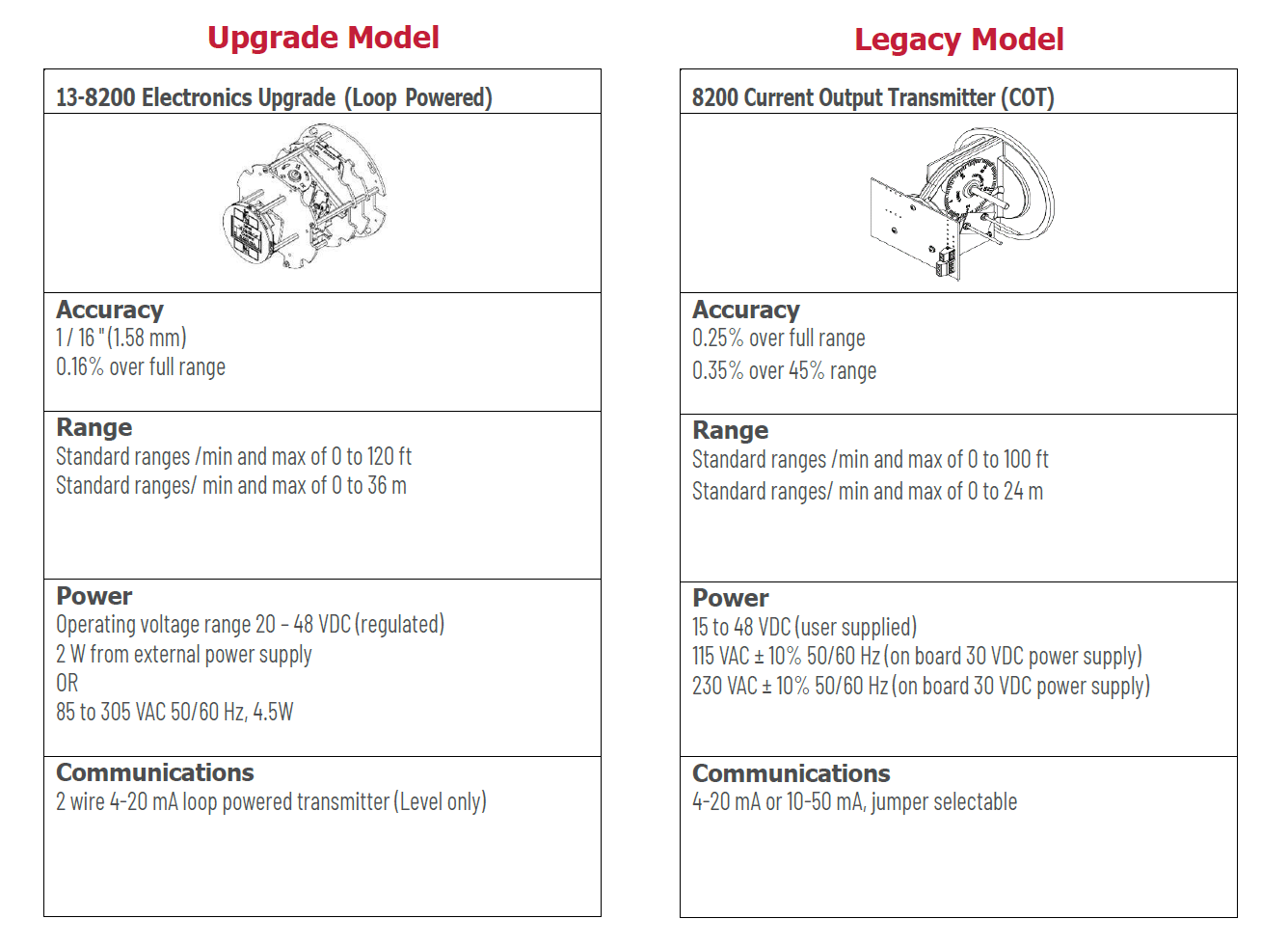

8200 Electronics Upgrade Kit
The ideal upgrade for 8200 Current Output Transmitters, Varec announces Notice of Product Withdrawal (PDF) and offers 13-8200 Electronics Assembly Kit as an effective retrofit solution.
- Use the existing power, communications conduit, junction boxes, and mounting

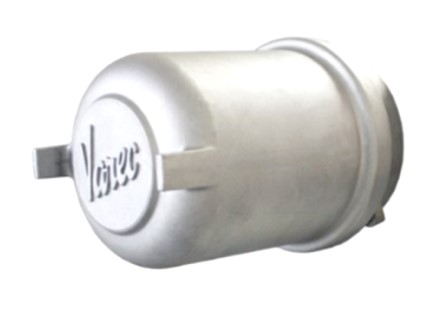

- Maintain existing Varec 8200 housing and current safety approvals
- Overview
Highlights
- 2 wire, industry standard output or 4-20 mA
- Available as DC or AC powered
- Capacitive Encoder for improved level measurement accuracy to 1/16th of an inch
- Features LCD Display for configuration, calibration, retrieval of Level
- 100% adjustable Level range from 0 to 120 ft or 0 to 36 m
- Activate relays with optional levelswitch ranges: 2 or 4 SPDT CAM
- 0 – 25 ft
- 0 – 50 ft
- 0 – 100 ft
Application
Level Only transmission for any Industry standard, single output 4 – 20
mA signal. 8200 COT installations mount directly to most mechanical tank
gauges, including Varec, L&J, and GSI. For easy drop-in replacement, use
existing power, communications conduit, junction boxes, and mounting.
