*FMR533 Radar Tank Gauge

*FMR533 Radar Tank Gauge

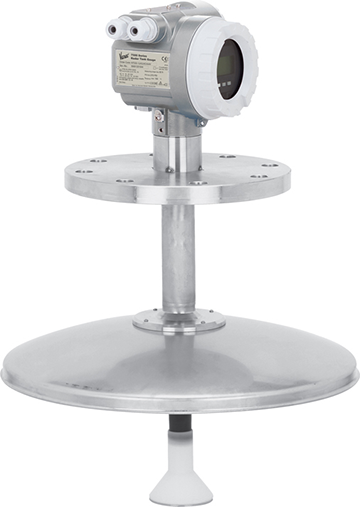

The FMR533 Radar Tank Gauge (RTG), with an accuracy rate of ±0.5 mm and ideally suited for custody transfer applications, is used for continuous, non-contact level measurement in bulk liquid storage tanks. The FMR533 RTG with parabolic antenna is excellently suited for free space applications up to 40 m (131 ft). The parabolic antenna is the largest free space antenna with the smallest beam angle. It is ideal for applications close to tank walls, where a manway cover is available. The parabolic antenna is also an excellent choice on products with a low reflectivity, such as asphalts and bitumens.

  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Accuracy Approved for Custody Transfer

FMR533 RTG uses C (6 GHz) band microwaves to measure liquids to an accuracy of ±0.5mm (0.02″) This gauge is NMI and PTB approved for use in custody transfer tank gauging systems.





Touch Screen Operations

Easy onsite operation using built-in touch control display without having to open the enclosure. A remote display is also available so that you can read and operate the gauge from the tank side.



Communication Diagram Fmr533



Low Cost Wiring

Intrinsically safe 4-wire technology reduces on-tank wiring costs and allows easy implementation into existing systems.



Worldwide Approvals

Each radar gauge is approved for use in explosion hazardous areas to FM, CSA and ATEX standards.



Key Features

  • Cost‐effective intrinsically safe — 4‐wire cable for HART and 24 VDC i.s. power.
  • Easy on‐site operation using built‐in display.
  • Easy commissioning and diagnostics using Windows® based software.
  • Inventory control version with available (±3 mm) accuracy.
  • National approvals (NMi, PTB) for custody transfer.
Weight

13 kg (28.7 lbs) + weight of flange

Power consumption

Max. 330 mW at 16 V, max. 500 mW at 24 V, max. 600 mW at 30 V.

Current consumption

Max. 21 mA (50 mA inrush current).

Ambient temperature Parabolic antenna

‐40 °F to +185 °F (‐40 °C and +85 °C)
‐40 °F to +392 °F (‐40 °C to + 200 °C)

Enclosure

IP 65, NEMA 4X (IP20, NEMA 1 with open housing and removed liquid crystal display) Housing T12: separate terminal compartment for increased safety respectively explosion proof.
Material: aluminium, seawater repellent, chromate, powder coated

Antenna

IP 68 (NEMA 6P)

Conduit entries

M20x1.5; Pg 13.5 (gland included);
¾ NPT; G ¾ internal thread

Approvals

FM, CSA and ATEX approvals
Marine certificate ‐ GL (Germanisch Lloyd), ABS, NK
Factory Mutual ‐ IS Class I,II,III, Div 1 Groups A‐G T*
Class 1, Zone 0, AEx ia IIC T*
DIP Class II,III, Div 1 Groups E,F,G T*
NI Class I, Div 2 Groups A‐D T*
XP‐IS Class 1, Div. 1 Groups A‐D T*
XP Class 1, Zone 0, IIC T*
Antenna Class 1, Zone 0, AEx ia IIC T*
CSA ‐ ExnC IIC Class 1 Zone 2, Exd [ia] IIC Zone 1/0, Ex ia IIC Class 1 Zone 0

See specifications document for more information.

Approvals & Certifications

FM, CSA and ATEX approvals

Antenna

DN450/20″

Process Connections

DIN and ASME flange

Output Options

HART

Gland Entry

Metric, NPT

Accuracy

NMi + PTB (<1mm) Custody Transfer, or Inventory Control Version (3mm)

Contact Varec for more information.
