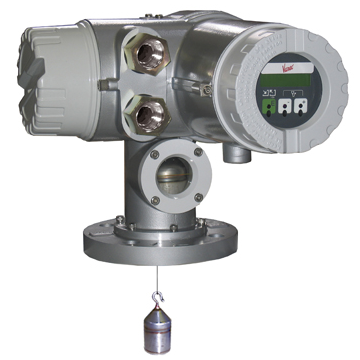

The 6005 Servo Tank Gauge (STG) is an intelligent tank gauge for high accuracy liquid level measurement in bulk storage tanks.



  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

True Multi-Measurement

In addition to level measurement, the 6005 STG can determine the interfaces between three liquids, specific gravity of these liquids and tank bottom. This allows the instrument to provide spot density measurements, profile the liquid density throughout the tank, or profile the stratified upper layer.



Proactive Safety Diagnostics

In the event of an abnormal measurement condition, the servo outputs a maximum level value to the local display and system software, thereby causing an alarm to warn your operators.



Compatible Communications

Output signals include industry standard RS-485 (MODBUS), as well as popular tank gauging protocols, such as Mark Space, Whessoe and Enraf BPM. You are also able to connect a spot or average temperature probe directly to the instrument.



Industry Approval

As you would expect, the servo is FM, ATEX and CSA approved for use in hazardous areas, NMI approved for custody transfer applications and approved for use in a SIL 2 system for overfill protection.



Simplifying Maintenance

Small features make your operators’ lives easier and safer; intelligent diagnostics provide advance warning of required maintenance, such as replacement of worn wire. Wetted parts are completely separated from the electronic circuit and the built in calibration window allows operators to ensure the correct position of the displacer before service work is underway.



Designed for Industry

The servo is suitable for atmospheric and high pressure applications up to a demanding 363 psi (2500 kPa, 25 bar). To make sure it fits your existing tank fittings, we have a wide variety of process connections to choose from.



Accuracy

Level +/‐0.7 mm for L=10 m, D=1 g/cm3 with 50 mm displacer
Interface +/‐2.7 mm for L=10m, D=0.2 g/cm3 with 50 mm displacer (D = delta of densities of 2 liquids)
Spot and Profile Density +/‐5kg/m3 or better, (at reference condition)
Tank Bottom +/‐2.1 mm (independent from liquid condition)

Service Rating

Aluminum or Stainless Steel — Atmospheric to 2.9 PSI (20 kPa) (Bar 0.2) gauge pressure
Aluminum or Stainless Steel — Atmospheric to 29 PSI (200 kPa) (Bar 2) gauge pressure
Stainless Steel — Atmospheric to 362.6 PSI (25,000 kPa) (Bar 25) gauge pressure

Measuring Range

Standard 0 – 91 ft (28 m)
Extended 0 – 118 ft (36 m)

Ambient Temperature Range

‐68 °F to +140 °F (‐20 °C to +60 °C)

Approvals

Weather proof, IP67/ NEMA 4X (only for the stainless steel drum chamber)
FM ‐ Explosion Proof ‐ Class 1, Division 1, Groups C & D
FM ‐ Explosion Proof ‐ AIS Class I, Division 1, Groups C & D
CSA ‐ Explosion Proof ‐ Class I, Division 1, Groups C & D
CSA ‐ Class I, Division 1, Groups C & D (Eex d[ia])
ATEX II 1/2G Ex d IIB T4, T3 (only for the stainless steel drum chamber)
ATEX II 1/2G Ex d[ia] IIB T4, T3
ATEX II 1/2G Ex d IIC T4, T3 (only for the stainless steel drum chamber)
ATEX II 1/2G Ex d IIB T4, T3, ‐40°C
ATEX II 1/2G Ex d[ia] IIB T4,T3, ‐40°C

For complete technical specifications, download the technical document or product manual.

01 Pressure Rating
  • Drum housing: 0.2bar g; aluminum casting
  • Drum housing: 0.2bar g; stainless steel
  • Drum housing: 6bar g; aluminum casting
  • Drum housing: 6bar g; stainless steel
  • Drum housing: 25bar g; stainless steel
02 Protection Class
  • 0 Weather proof, IP67/ NEMA 4X (only for the stainless steel drum chamber)
  • FM ‐ Explosion Proof ‐ Class 1, Division 1, Groups C & D
  • CSA ‐ Explosion Proof ‐ Class I, Division 1, Groups C & D
  • ATEX II 1/2G Ex d IIB T4, T3 (only for the stainless steel drum chamber)
  • ATEX II 1/2G Ex d[ia] IIB T4, T3
  • FM ‐ Explosion Proof ‐ AIS Class I, Division 1, Groups C & D
  • CSA ‐ Class I, Division 1, Groups C & D (Eex d[ia])
  • ATEX II 1/2G Ex d IIC T4, T3 (only for the stainless steel drum chamber)
  • ATEX II 1/2G Ex d IIB T4, T3, ‐40°C
  • ATEX II 1/2G Ex d[ia] IIB T4,T3, ‐40°C
03 Application
  • Level
  • *Tax + Weight NMi, Level
  • Multi measurement, Level, I/F Level, Bottom, Density
  • *Tax + Weight NMi, Level + I/F Level, Bottom, Density
  • *Tax + Weight NMI, Density Profile, Level, I/F Level, Bottom, Density
  • Density profile multi measurement, Level, I/F Level, Bottom, Density
04 Primary (Digital) Output
  • Enraf BPM
  • Serial Pulse V1
  • RS 485 MODBUS
  • Not selected
  • Whessoe matic 550 + OVP = Over-voltage protection
  • Mark / Space
05 Secondary Output
  • Not selected
  • Alarm contact, 4x SPST
  • 4 ‐ 20 mA, 2 channels selectable
  • 4 x SPST + 4 ‐ 20 mA, 2 channels
  • 2 x SPST, overspill protection TÜV
  • 4 x SPST, 4 ‐ 20 mA, 1 channel
06 Signal Input from Field Units
  • HART protocol (e.g. NMT, NRF)
  • HART + Pt100 spot temp.
  • HART + operation contact, 3digits
  • HART + Pt100 Spot temp.+ operation contact
  • HART + 1 x status (discrete input)
  • HART + Pt100 spot temp. + 1 x status (discrete input)
  • HART + Pt100 + operation contact +1 x status (discrete input)
07 Measuring Range, Wire Material
  • 0…28m, AISI316 wire
  • 0 ‐36m, AISI316 wire
  • 0 ‐16m, AISI316 wire PTFE covered wire
  • 0 ‐16m, Alloy C
  • 0…22m; Alloy C, 0.2mm
  • 0…47m; SUS316, 0.15mm
08 Cable Entry
  • Cable entry: four G(PF) 3/4″ thread
  • Cable entry: four NPT 3/4″ thread
  • Cable entry: four M20 thread
  • Cable entry: four M25 thread
09 Process Connection
  • Flange ANSI 3″ 150 Ibs RF
  • Flange ANSI 3″ 300 Ibs RF (only for 25bar drum chamber)
  • Flange ANSI 6″ 150 Ibs RF
  • Flange DIN DN80 PN10 RF
  • Flange DIN DN80 PN25 RF (only for 25bar drum chamber)
  • 4″ 300lbs RF, flange ANSI B16.5
10 Power Supply
  • Power supply 85…264V, 50/60Hz
  • Power supply 20…62V DC, 20W / 20…55V, 50/60Hz, 20VA
11 Displacer
  • Conical 50 mm, PTFE
  • Cylindrical 50 mm, AISI316 (standard)
  • Cylindrical 40 mm, AISI316
  • Cylindrical 30 mm, AISI316
  • 70 mm, W&M NMi
  • 110 mm, W&M PTB
  • Cylindrical 50 mm, Alloy C
  • Cylindrical 50 mm, PTFE
  • Cylindrical 40 mm, PTFE
  • Cylindrical 30 mm, PTFE
12 O-ring; Chamber Finishing
  • NBR; standard chamber
  • Silicon rubber, standard chamber
  • Fluor rubber, standard chamber
  • PTFE (wire drum FKM); not selected
  • PTFE (wire drum FKM); FEP coated
  • Silicon rubber, PTFE coated chamber
  • Neoprene (ammonia application), standard chamber
  • FKM; FEP coated
  • FFKM; not selected
  • FFKM; FEP coated
13 Other Options
  • Additional options not selected
  • With cleaning nozzle
  • With gas purging nozzle
  • With guidewires (AISI316 strand)
  • With relief valve
  • With relief valve and pressure gauge
  • Sunshade
  • Rc3/8 gas purging nozzle, guide wire installation
  • Rc3/8 cleaning nozzle, guide wire installation
  • Guide wire installation, sunshade
  • Relief valve, guide wire installation
  • Relief valve, pressure gauge, guide wire installation
  • Relief valve, sunshade
  • Relief valve, pressure gauge, sunshade
