4560 Servo Gauge Monitor

4560 Servo Gauge Monitor

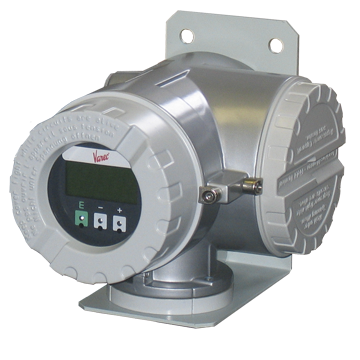

The 4560 Servo Gauge Monitor (SGM) operates as a companion to the 6005 Servo Tank Gauge (STG). Positioned at the tank side, the 4560 SGM provides indication of measured level, temperature data and operating status, and can send operating commands to the servo gauge.



  • Overview
  • Specifications
  • Options
  • Resources
  • Related Products

Easy to Read, Safe and Simple to Operate

Mounted within a flameproof enclosure, a Liquid Crystal Display (LCD) with touch control ensures safe operation, even in hazardous areas.





Tank Side Convenience

Mounted conveniently at the tank side, the 4560 SGM helps reduces the times an operator needs to climb the tank to check a gauge reading. Operating commands to the 6005 STG include level measurement, displacer host, tank bottom, interface level and specific gravity.





Low-cost Wiring

The 4560 SGM is inexpensive to install. A simple HART 2-wire, connection to the servo gauge provides intrinsically safe power and communications. A mounting bracket means you can attach it to existing structures around your tank, such as a pole or panel.







Service Rating

IP67

Power Supply

85 ‐ 264 VAC, 50/60 Hz, 25 VA
20 ‐ 62 VDC, 25 W: 20 ‐ 55 VAC, 50/60 Hz, 25 VA

Approvals

Protection: Weather proof; IP67,NEMA 4X
Flameproof, XP Class I, Div.1, Groups ABCD
FM Flameproof, Class I, Div.1, Groups ABCD
CSA ATEX ‐ Flameproof ‐ Ex d IIC T4
ATEX and NMi ‐ Flameproof ‐ Ex d IIC T4*

For complete technical specifications, download the technical document or product manual.

01 Approvals
  • Protection: Weather proof; IP67,NEMA 4X
  • Flameproof, XP Class I, Div.1, Groups ABCD
  • FM Flameproof, Class I, Div.1, Groups ABCD
  • CSA ATEX ‐ Flameproof ‐ Ex d IIC T4
  • ATEX and NMi ‐ Flameproof ‐ Ex d IIC T4*
02 Cable Entry
  • Two NPT 1/2” thread
  • Two NPT 1/2” thread
  • Two thread Pg16
  • Two thread M20
03 Power
  • 85 ‐ 264 VAC, 50/60 Hz, 25 VA
  • 20 ‐ 62 VDC, 25 W: 20 ‐ 55 VAC, 50/60 Hz, 25 VA
04 Mounting
  • Optional Mounting Bracket
05 Color

Silver

Manuals

4560 SGM ATEX Safety Instructions
Safety instructions for electrical apparatus certified for use in explosion-hazardous areas for the 4560 Servo Gauge Monitor.
4560 Servo Gauge Monitor Installation and Operations Manual
Designed to assist the user with the installation, operation, calibration, and maintenance of the Varec Model 4560 Servo Gauge Monitor.

Parts and Accesories

4560 Servo Gauge Monitor Maintenance and Spare Parts List
Parts list for the 4560 Servo Gauge Monitor.
Servo Tank Gauging Checklist
Checklist for Servo Tank Gauge needs.
Temperature Tank Gauging Checklist
Checklist for Temperature Tank Gauging needs.

Technical Specifications

4560 Servo Gauge Monitor Technical Specifications
Technical specifications for the Varec Model 4560 Servo Gauge Monitor.
